How to Create a Virtual Load Balancer in NetScaler ADC

If a website takes longer than three seconds to load, 53% of users will abandon it. This stat explains why virtual load balancing has become essential not only for user experience, but for business survival. In modern enterprise environments, performance is demanded. And when spikes in traffic or backend maintenance arise, load balancing is what keeps everything from crashing.

NetScaler ADC is one of the most trusted tools in enterprise networking because of its capabilities and precision. It is used across industries to streamline traffic, maintain high availability, and simplify infrastructure complexity. From healthcare systems to financial platforms, organizations rely on NetScaler to ensure their applications stay online and optimized.

In this walkthrough, we’ll show you how to set up a virtual load balancing server using the NetScaler ADC console—the same way you’d learn it in an instructor-led training course. Whether you’re new to load balancing or brushing up for a certification or project rollout, this guide is designed to be clear, actionable, and grounded in best practices.

Let’s get started.

Step 1: Define Backend Servers

Before you can balance any traffic, NetScaler needs to know what it’s balancing between, and that starts with defining your backend servers. Think of these as the foundational pieces of your load balancing puzzle. Each server represents a resource in your infrastructure, such as an application server, web server, or database node. Getting this step right ensures the rest of your configuration runs smoothly.

To begin, head into the NetScaler ADC management console and navigate to:
Traffic Management > Load Balancing > Servers

This is where you’ll register each internal resource that will eventually sit behind your virtual server. In our walkthrough, we’re using Red, Blue, and Green as sample server identifiers. But you can (and should) name yours based on real function or IP references. That said, a quick tip from the field: keep your naming consistent and intuitive. If you’re managing multiple environments or handing off to another team later, clear naming can save hours of confusion.

Once you’re in the Servers tab, click “Add,” enter the server name, IP address, and other relevant details, and then save. Repeat this process for each server you’ll include in the load balancing pool.

Once this is complete, NetScaler knows which resources are available to serve traffic. Now, it’s time to define how it should talk to them—and that’s where services come in.

Step 2: Create Services

Now that NetScaler knows which servers exist, it needs to learn how to communicate with them. Services act as the translation layer between NetScaler and your backend servers. Without them, your setup has no instructions for what kind of traffic to send or how to manage it.

To configure services, return to the NetScaler ADC console and navigate to Load Balancing > Services. Here, you’ll create a service entry for each of the backend servers you previously defined. Each service needs two key pieces of information: the protocol and the port. For example, if your application runs over HTTP, you’d set the protocol to HTTP and the port to 80. If it’s for hosting secure traffic, set it to HTTPS and port 443.

Once you’ve entered that information, you’ll link each service to its corresponding backend server. This ensures that NetScaler routes traffic using the correct rules and connection type. So, if you created a “Red” server, you’ll now create a “Red Service” that tells NetScaler: “Use HTTP on port 80 when sending traffic to this server.”

Once all your services are in place and appropriately linked, you’ve completed the communication blueprint. NetScaler now understands both who it’s sending traffic to and how to reach them. With this connection logic in place, you’re now ready to build the central hub of the setup.

Step 3: Set Up the Virtual Server

Now that your backend servers are defined and your services are mapped, it’s time to create the centerpiece of your load balancing setup—the virtual server. This is the endpoint your users or applications will connect to. Behind the scenes, NetScaler will distribute incoming requests across the backend services you’ve configured.

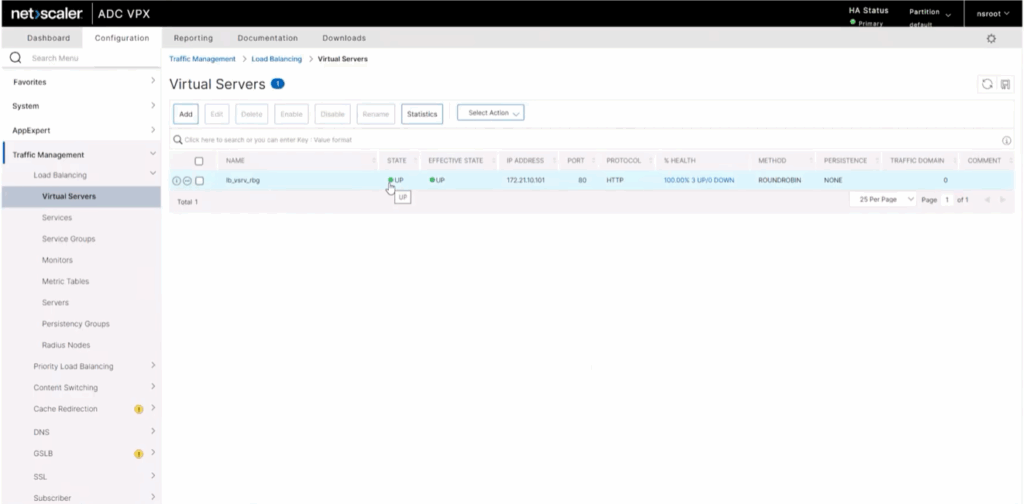

To begin, go to Load Balancing > Virtual Servers in the NetScaler ADC console and click Add. You’ll assign this virtual server an IP address or FQDN, select the appropriate protocol (such as HTTP or HTTPS), and choose a port for incoming traffic. This server doesn’t do the work itself; instead, it intelligently delegates requests to your backend services based on rules and configurations you’ll define next.

Once created, you’ll bind the services you set up earlier—Red, Blue, and Green—to this virtual server. This step essentially connects the dots between your configuration and the actual application servers running behind the scenes.

Once the bindings are complete, check the state of each service. You want to confirm that all services are marked as UP, indicating they are reachable, properly configured, and ready to handle traffic. If a service shows as DOWN, it’s a signal to double-check IP addresses, ports, firewall rules, or even the application status on that server.

At this point, you’ve built a fully functioning load-balanced environment. The virtual server acts as the single point of entry, intelligently routing requests to your backend infrastructure with precision. Next, we’ll fine-tune that behavior by adjusting how traffic is distributed and how persistence is handled.

Step 4: Configure Load Balancing Behavior

This step is where you control how traffic flows across your backend servers, ensuring it’s not only balanced but also optimized for performance, reliability, and user experience.

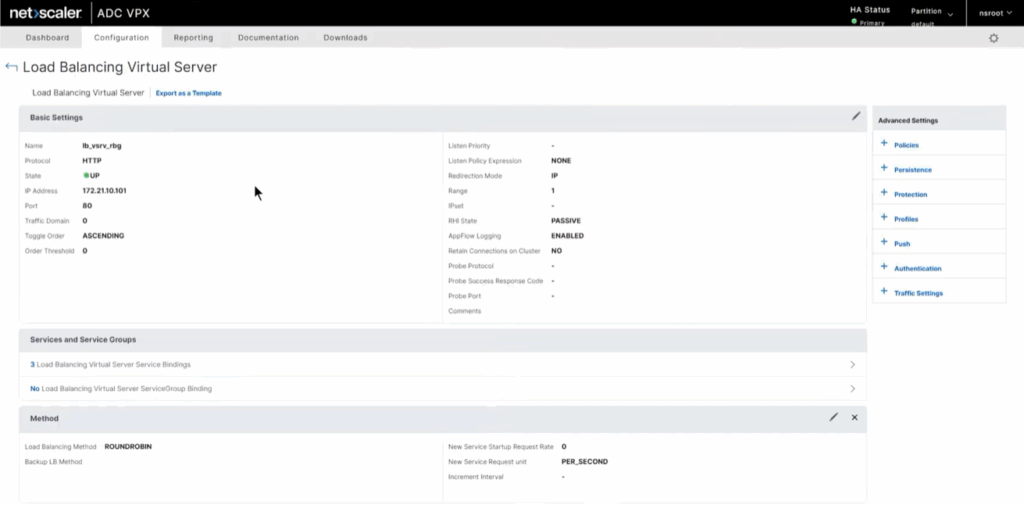

In the NetScaler ADC console, navigate to your virtual server’s configuration and set the load balancing method. One of the most commonly used options is the Round Robin method, which distributes requests evenly across all services in rotation. It’s simple and effective for environments where all servers have roughly equal capacity. But if some servers are more powerful than others or if you’re dealing with variable traffic loads, Least Connections may be a better fit. This method directs traffic to the server with the fewest active sessions, helping to prevent bottlenecks during traffic spikes.

After that, determine where persistence is needed. In some applications, especially those involving user sessions, logins, or transactions, it’s critical that repeat requests from the same user are directed to the same backend server. You can enable persistence using methods like source IP or cookies to ensure session consistency and prevent data loss or unexpected behavior.

Once your method and persistence settings are dialed in, save your configuration and run a quick test to confirm everything is behaving as expected.

You’ve now built a complete, intelligent load balancing setup with NetScaler. All that’s left is to validate the results and explore additional tuning options if necessary.

Final Output: A Live Virtual Load Balancer

Your virtual load balancer is now live, and your services are fully operational. With your backend servers defined, services mapped, and load balancing behavior configured, the NetScaler ADC is now intelligently distributing traffic across your infrastructure in real-time.

Incoming requests are no longer bottlenecked by a single server. They’re routed based on the method you configured, ensuring smoother performance, faster response times, and better use of system resources. If one server goes down or becomes overwhelmed, the others step in seamlessly. This critical redundancy is the foundational principle of a resilient infrastructure.

Setting up a virtual load balancer may seem like a small technical task, but it’s a strategic move. It strengthens your system’s ability to eliminate single points of failure and provides users with a consistent experience, even under pressure in your backend.

By following this process, you’ve taken the first step toward building a scalable, production-ready Citrix environment. Your system is now optimized for performance and growth.

Want Hands-On NetScaler Training?

Walking through this virtual load balancer setup gives you a strong foundation. However, if you’re serious about mastering NetScaler, the next step is to gain hands-on experience in a real lab environment.

At Layer 8 Training, you’ll get more than just a course; you’ll experience a structured, instructor-led training that shows NetScaler in action. Our labs simulate real-world enterprise networks, so you’re trained to build, break, fix, and fine-tune systems the way you would on the job.

Our courses are led by Citrix-certified professionals who bring years of real deployment experience into the classroom. They teach you how to think like a Citrix engineer, guiding you through complex configurations and troubleshooting scenarios with clarity and purpose.

Whether you’re preparing for certification or rolling out Citrix solutions in a production environment, Layer 8 Training helps you build the confidence and capability to lead, support, and scale them.

If you’re ready to move from theory to mastery, now’s the time.

Explore NetScaler courses at Layer 8 Training and discover how hands-on learning can unlock your team’s full potential.

Frequently Asked Questions (FAQs)

1. What is a virtual load balancer, and why do I need one?
   A virtual load balancer intelligently distributes incoming network traffic across multiple backend servers. It helps prevent server overload, improves application performance, ensures high availability, and enhances redundancy, especially during spikes in traffic or outages.
2. How does NetScaler ADC handle traffic distribution?
   NetScaler ADC uses customizable load balancing methods like Round Robin or Least Connections, combined with optional persistence settings. These configurations allow it to route requests efficiently based on real-time server health and capacity.
3. What’s the difference between services and virtual servers in NetScaler?
   Services define how NetScaler communicates with each backend server (including port and protocol), while a virtual server acts as the public-facing entry point that binds those services together to deliver load-balanced traffic flow.
4. Can I monitor server health and status in NetScaler ADC?
   Yes. Once services are created and bound, NetScaler continuously checks their health. The console displays the state of each server as UP or DOWN, allowing you to detect misconfigurations, connection issues, or offline resources instantly.
5. Is this configuration scalable for enterprise environments?
   Absolutely. NetScaler ADC supports large-scale deployments and integrates with complex enterprise infrastructure. The step-by-step setup outlined in the blog mirrors best practices used in production environments across industries.
